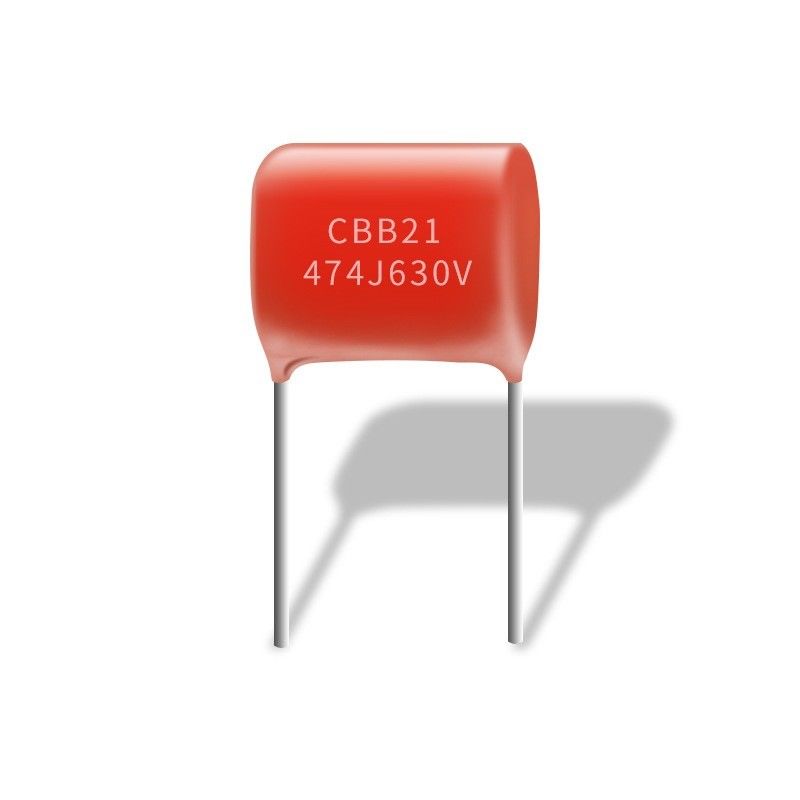

474J 630V Capacitor High Frequency Resistance CBB Film Capacitor

High-Frequency Resistance CBB21 474J 630V Metallized Polyester Film Capacitor Long Life​

CBB21X belongs to the metallized polypropylene film capacitor, which is characterized by low high-frequency loss, suitable for high-frequency high-current excellent, high insulation resistance, long life, widely used in high-frequency, DC, AC and pulse circuits. . Excellent frequency and temperature characteristics, even at high frequencies, the loss is extremely small, using vacuum impregnated paraffin, high insulation resistance, good moisture resistance. It is suitable for high-frequency and high-current fields such as color TV S-correction circuits, and is widely used in high-frequency, DC, AC and pulse circuits, and can also be used in high-end energy-saving lamps, brackets, and ballast products.


Features and Usage


1)This is constructed from metallized polypropylene film dielectric, non-inductive construction.

2)Epoxy resin coating, radial CP wire.

3)Very small dissipation factor at high-frequency, very small inner temperature rise.

4) Good stability of capacitance, excellent insulation resistance property.

5) excellent self-healing property.

6) suitable for DC, pulse, high-frequency large-current application widely used in display, sound equipment, audio-visual devices, telecommunication equipment, data transmission and process facility and various electronic equipment.

Usage:


Suitable for DC and lowpulse occasions, forthe amplifier, TV, communications, power supply, LED drivers and other requirements of the small size of the circuit.

Specification:


Climatic Category	40/085/21
Rated Voltage	63V , 100V , 250V,400V,630V
Capacitance Range	0.0010μF~1.0μF
Voltage Proof	1.6 UR
Insulation Resistance	≥3 000MΩ, CR≤0.33μF
	≥1 000S, CR>0.33μF
	(20℃, 1min)
Disspation Factor	≤0.008(20℃, 1kHz)

Outline Drawing:

FAQ

Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.
