| Fetures: | Excellent Flame Retardant Properties | Capacitance: | 1.0uf |
|---|---|---|---|
| Rated Voltage: | 250-310V | Operating Temperature: | -40℃～+110℃ |
| Application: | Home Appliance, Power Supply, Ammeter | Media Available: | Datasheet, Photo |
| Highlight: | Self Healing X2 Safety Capacitor,P22.5MM X2 Safety Capacitor,1.0Uf Metallized Polypropylene Film Capacitor |
||

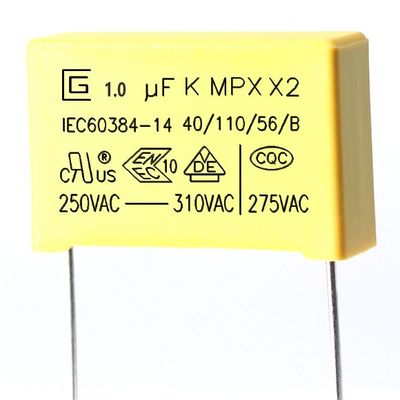

Long Life Due 1.0uf 105K 275VAC X2 Safety Capacitor Excellent Flame Retardant Properties
X2 Safety Capacitor.pdf
X capacitor ---- metallized polypropylene film capacitor; usually, X capacitors mostly use polyester film capacitors with relatively large ripple current resistance. This kind of capacitor is large in size, but allows large instantaneous charging and discharging currents, and its internal resistance is correspondingly small. x capacitor adopts high voltage OPP (metalized polypropylene material winding processing) plastic packaging with square outside and round inside. opp material not only has better electrical performance, but also can effectively reduce the influence of high frequency pulses when connected in parallel with the power supply input. The impact of the power supply.
Marking
1. CIGU logo:
2. Capacitance:(104K ,0.1μF)
3. Capacitance Tolerance:(K)±10%
4. Rated Voltage:250,275,300,305,310VAC 5. Product Class:X2
6. Product type: MPX
7. Climatic Category: 40/110/56
8. Passive Flammability Class: B
9. China approvals mark: CQC
10. Germany approvals mark: VDE
11. ENEC approvals mark: ENEC
12. American approvals mark: CUL
13. Approval standard: IEC60384-14
Products Introduction
MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating. They have excellent features of self-healing and good flame retardant according to UL 94-V0
Type application
The Products Would widely used for the Interference suppressors and across-the-line capacitor applications.Suitable for used in situations where failure of the capacitor will not lead to danger of electric shock.
Features
1 Non-induction construction
2 High moisture-resistance
3 Self-healing property
4 Flame retardant type(compliance with UL 94V-0)
5 Very small loss
6 Excellent frequency and temperature characteristics
7 High insulation resistance
Specifications(IEC 60384-14)
|
Creepage distance and electrical clearance |
|
Voltage range | Creepage distance | Electrical clearance |
|
250VAC＜ UR≤440VAC |
＞4.0mm | ＞3.0mm | ||
|
130VAC＜ UR≤250VAC |
＞3.0mm | ＞2.5mm |
| Test items | Performance requirements | Conditions of test |
| Capacitance | Within the tolerance specified | 1KHz, 1Vrms Max. at 25℃ |
| Dissipation Factor | 0.001 (0.1%) Max. | 1KHz, 1Vrms Max. at 25℃ |
| Voltage proof | Shall be no abnormality | Between terminals 4.3UR (Vdc) Test of 60sec. |
| Between terminal and enclosure UR×200％+1500Vac, 60sec. | ||
| Insulation resistance | CR ≤ 0.33μF IR ≥ 15,000MΩ CR >0.33μF IR ≥6,000s | 100±15Vdc, 60sec / 25℃ |
| Robustness of terminations | No wire breakage and no damage of capacitor |
Tense Strength of Terminal Load Force : 1.0 Kg Holding Time : 10 ± 1sec |
|
Bending Strength of Terminal Load Force : 0.5 Kg Bending Time : 4 x 90 ﾟ |
||
| Resistance to soldering heat |
(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the initial value |
Solder temperature: 260±5℃ Solder time: 5±0.5sec |
| Solderability | 95% of the surface tinning |
Solder temperature: 260±5℃ Solder time: 2±0.5sec |
| Rapid change of temperature | The capacitors shall be visually examined and there shall be no visible damage. |
Lower category temperature: -40℃ Upper category temperature: 110℃ Number of cycles: 5 Duration t1 = 30 min |
| Vibration | The capacitors shall be visually examined and there shall be no visible damage |
Frequency range: 10~55Hz Course: X,Y,Z (axis) 2h / axis ( 6h in total) Displacement amplitude: 0.75mm |
| Test items | Performance requirements | Conditions of test |
| Climatic sequence |
(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits (5) Voltage proof : Normal |
Dry Heat Upper Temperature: 110℃ Lower Duration: 16Hrs |
|
Cold Temperature: -40℃ Duration: 2Hrs |
||
| Damp Heat Steady State |
(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the Initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits (5) Voltage proof : Normal |
+40°C and 93% RH, 56 days |
| Charge and discharge |
(1) Appearance : No visible damage (2) △C/C : ≤ ±10% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits |
Test voltage : √2 x URVAC 50 Hz Charge and discharge: 0.5sec/time Repeated for 10000 cycles |
| Endurance |
(1) Appearance : No Visible Damage (2) △C/C : ≤ ±10% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits |
1.25 x UR VAC 50 Hz, once every hour increase to 1,000VAC for 0.1 second, 1,000 hours at upper rated temperature |
Storage conditions
1 t should be noted that the solderability of the terminals may be deteriorted when stored barely in an atmosphere for a long preriods
2 It shouldn't be located in particularly high temperature and high humidity, it must submit to the following conditions(keeping in the original package)
Temperature: 35 MAX Relative humidity:60% MAX
3 Storage period:Losse:12 monthes max (from the manufacturing date marked on the label in package bag)
|
Item |
Characteristic requirement |
Test method&Condition |
||||||
|
Climatic Category |
40/110/56 |
|||||||
|
Passive Flammability Class |
B |
|||||||
|
Operating Temperature |
-40~+110 |
|||||||
|
Capacitance Range |
0.0022μF~2.2μF |
|||||||
|
Capacitance Tolerance |
±10%(K),±20%(M) |
1KHz ,1.0Vrms ,25 |
||||||
|
Rated Voltage |
250V AC/275V AC/300V AC/305V AC/310V AC |
|||||||
|
Dissipation Factor |
1KHz<0.10% |
IR≥6000s |
||||||
|
Insulation Resistance |
C≤0.33μF |
C>0.33μF |
UR>100V ,100VDC, |
|||||
|
IR≥15000MΩ |
IR≥6000s |
60S,20 |
||||||
|
Withstand voltage Between Terminals |
No permanent breakdown or flashover |
4.3UR(d.c) 60s 25Cut off Current 10mA |
||||||
|
Withstand voltage Between Terminals and Case |
No permanent breakdown or flashover |
2UR+1500V(a.c) 60s 25 ≥2000V(a.c) 25 |
||||||
|
MAX. Pulse rise time (dv/dt) |
Lead spacing |
|||||||
|
7.5mm 600V/μs |
10mm |
15mm |
22.5mm |
27.5mm |
37.5mm 100V/μs |
|||
Enviroment requirement
1 Compliance with the requirement of RoHS.
2 Compliance with the requirement of REACH.
3 Without Halogen(as required).
4 Please see the attachment 2 for the test reprots of the Rohs and Reach by a third party
