Product Details:
|
| Operating Temperature Range: | -40°C To +85°C | Dissipation Factor: | ≤ 0.1% |
|---|---|---|---|
| Rated Frequency: | 50/60Hz | Lead Wire Material: | Tinned Copper |
| Product Name: | X2 Safety Capacitor | Package Type: | Radial |
| Insulation Resistance: | ≥ 10,000MΩ | Dielectric Strength: | 2,000VAC |
| Highlight: | 60Hz X2 Safety Capacitor,Enhanced Dielectric Strength X2 Safety Capacitor,50Hz X2 Safety Capacitor |
||

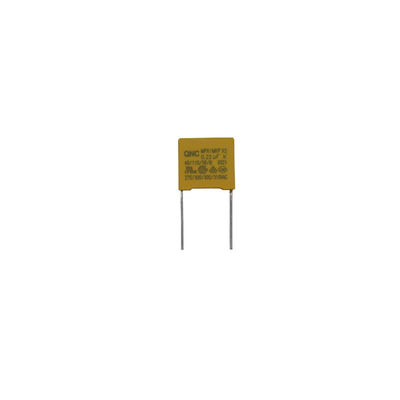

The X2 Safety Capacitor is an essential component designed for various applications that require high-grade electrical safety and stability. This capacitor is specifically engineered to meet the stringent safety standards required in AC line filtering applications. Manufactured by an X2 Safety Capacitor factory that is committed to delivering both quality and reliability, this capacitor is a crucial part of ensuring the safe operation of electrical equipment.
With dimensions of 6.3mm X 11mm, the X2 Safety Capacitor offers a compact form factor that is suitable for a range of electronic devices. Its small size makes it an ideal choice for applications where space is a premium, without compromising on the safety and performance that is required in line-to-ground (across-the-line) applications. Despite its diminutive stature, this capacitor is robust and capable of working effectively within a broad operating temperature range of -40°C to +85°C, ensuring reliable performance even under extreme conditions.
The X2 Safety Capacitor is rated at 250VAC, which makes it suitable for many mains voltage applications. This rating ensures that the capacitor can handle typical voltage levels found in household and commercial electrical systems. Furthermore, the rated surge voltage of this capacitor is set at 2.5 times the rated voltage, providing an extra layer of protection against voltage spikes and surges that can occur in electrical circuits. This feature is particularly important in protecting sensitive electronic components from damage caused by unexpected voltage transients.
Another critical attribute of this X2 Safety Capacitor is its capacitance tolerance of ±20%. This specification indicates the precision with which the component maintains its capacitance value, ensuring consistent performance and reliability in the circuits it is used in. The tolerance level is carefully selected to balance the need for accuracy with the practical considerations of manufacturing and application variability.
As an X2 Safety Protection Capacitor, it is designed to prevent electrical fires and provide protection against electric shock, making it an indispensable component in a wide array of applications. This includes use in power supply units, lighting ballasts, and other devices where failure of the capacitor could lead to such hazards. The X2 Safety Capacitor is constructed with materials and a design that are flame retardant and have self-healing properties, thereby enhancing the overall safety of the electronic devices they are used in.
Quality control is a significant priority for the X2 Safety Capacitor factory, with rigorous testing procedures in place to ensure that each capacitor meets the highest safety and performance standards. From raw materials to final product, each capacitor undergoes a series of inspections and tests designed to verify its electrical characteristics, durability, and compliance with international safety standards. This attention to detail ensures that end-users can have complete confidence in the consistent performance and safety of the X2 Safety Capacitor.
In summary, the X2 Safety Capacitor is a small, yet powerful, safety-oriented component that is a must-have in AC line filtering applications. It is engineered to operate within a wide temperature range, handle significant voltage surges, and maintain its capacitance within a specific tolerance. Produced by a dedicated X2 Safety Capacitor factory that prioritizes quality and safety, this capacitor is an essential element for manufacturers and engineers who demand the highest level of protection for their electronic devices and systems.
| Parameter | Value |
|---|---|
| Package Type | Radial |
| Lead Wire Material | Tinned Copper |
| Mounting Type | Through-Hole |
| Product Name | X2 Safety Capacitor |
| Rated Surge Voltage | 2.5 Times Of Rated Voltage |
| Rated Voltage | 250VAC |
| Dielectric Strength | 2,000VAC |
| Lead Wire Length | 15mm |
| Dissipation Factor | ≤ 0.1% |
| Size | 6.3mm X 11mm |
The CL brand X2 Safety Capacitor, originating from CHINA, is a critical component designed for a variety of applications that require high safety standards and reliability. With a capacitance range of 0.001uF to 4.7uF and an operating temperature range from -40°C to +85°C, these capacitors are versatile and robust for diverse industrial conditions. The mounting type of the CL X2 Safety Capacitor is through-hole, which makes it suitable for various PCB designs, while the radial package type ensures ease of installation in tight spaces. The lead wire material is made of tinned copper, offering excellent conductivity and resistance to oxidation.
As a product from an X2 Safety Capacitor factory, these capacitors are commonly utilized in scenarios where interference suppression and across-the-line applications are crucial. They serve as X2 Protective Device Capacitors, safeguarding equipment from transient surges and voltage spikes, which are common in power supply lines. Their high reliability and safety features make them ideal for use in power meters, LED lighting, and automotive electronics, where stability and long life are mandatory.
Moreover, the CL X2 Safety Capacitor is also suitable for home appliances like air conditioners, washing machines, and refrigerators, where they contribute to the suppression of electromagnetic interference (EMI), ensuring these devices comply with international safety standards. In industrial environments, they can be found in control systems, power management devices, and various types of machinery that require consistent performance and protection against electrical noise.
The design and materials of the CL X2 Safety Capacitor allow it to perform under adverse conditions, making it a reliable choice for outdoor applications such as wind power systems, communication infrastructure, and other equipment exposed to harsh weather conditions. Their durability and safety features are essential for the smooth operation and longevity of such equipment.
In summary, the CL X2 Safety Capacitor is a versatile and indispensable component for electronic devices and power systems that demand high levels of protection and reliability. Whether you're sourcing from an X2 Safety Capacitor factory for consumer electronics, industrial machinery, or energy infrastructure, the CL X2 Safety Capacitor stands as a robust and effective solution for a wide range of applications.
Brand Name: CL
Place of Origin: CHINA
Rated Surge Voltage: 2.5 Times Of Rated Voltage
Insulation Resistance: ≥ 10,000MΩ
Capacitance Range: 0.001uF - 4.7uF
Dielectric Strength: 2,000VAC
Operating Temperature Range: -40°C To +85°C
Our X2 Safety Protection Capacitor from CL is designed for optimal safety and reliability. Manufactured in CHINA, this X2 Safety Device Capacitor is built to withstand rated surge voltages up to 2.5 times the rated voltage, ensuring dependable operation under stress. With an insulation resistance of over 10,000MΩ and a broad capacitance range from 0.001uF to 4.7uF, our capacitors are versatile for various applications. The robust dielectric strength of 2,000VAC paired with an operating temperature range of -40°C to +85°C, makes the CL X2 Safety Device Capacitor a reliable choice for your safety-critical needs.
The X2 Safety Capacitor is designed to meet the highest standards of safety and performance. Our technical support and services for the X2 Safety Capacitor ensure that your device operates efficiently and reliably. We offer comprehensive support services to address any technical challenges you may encounter. Our team of experts is dedicated to providing solutions that enhance the functionality and longevity of your X2 Safety Capacitor. For any product-related inquiries or technical assistance, please refer to our detailed FAQ section or use our troubleshooting guides for quick and effective problem resolution. We are committed to delivering exceptional service and support for all our customers.
The X2 Safety Capacitor is meticulously packed to ensure maximum protection during transport. Each capacitor is encased in anti-static material, preventing electrostatic discharge that could compromise the integrity of the product. The capacitors are then placed in individual slots within a sturdy, custom-designed cardboard box, offering additional shock absorption.
For bulk orders, the individual boxes are grouped and securely sealed in a larger, durable outer carton, which is clearly labeled with the product name, specifications, and handling instructions to facilitate easy identification and proper handling. The outer carton is reinforced with strapping tape to prevent accidental opening during shipping.
Prior to dispatch, each shipment undergoes a thorough inspection to ensure that packaging standards are met, and the products are ready for safe transport. The X2 Safety Capacitors are shipped using trusted carriers, and each package is traceable with a unique tracking number provided to the customer upon shipment. We ensure that all necessary precautions are taken to deliver the X2 Safety Capacitor to our customers in perfect condition.
Q1: What is the rated voltage of the CL X2 Safety Capacitors?
A1: The CL X2 Safety Capacitors are designed with various rated voltages, typically ranging from 275VAC to 310VAC. Please refer to the specific product datasheet for the exact voltage rating of your capacitor.
Q2: Can the CL X2 Safety Capacitors be used in high-frequency applications?
A2: Yes, CL X2 Safety Capacitors are suitable for high-frequency applications. They are commonly used in applications like power supplies and noise suppression circuits where high-frequency performance is critical.
Q3: Are the CL X2 Safety Capacitors ROHS compliant?
A3: Yes, the CL X2 Safety Capacitors are ROHS compliant, meaning they are free from hazardous substances in compliance with EU regulations.
Q4: What is the typical lifespan of a CL X2 Safety Capacitor?
A4: The lifespan of a CL X2 Safety Capacitor depends on its operating conditions, such as voltage, current, and temperature. However, CL capacitors are designed for long-term reliability and typically have an operational life consistent with industry standards for X2 capacitors.
Q5: Can the CL X2 Safety Capacitors be used for AC applications?
A5: Yes, CL X2 Safety Capacitors are specifically designed for AC applications and are typically used across the line in a wide range of electronic devices to ensure safety and noise suppression.
