Product Details:
|
| Termination Style: | Axial Leads, Radial Leads, SMD Pads | Usage: | Temperature Sensor |
|---|---|---|---|
| Thermal Time Constant: | 1s To 15s | Output: | Analog Sensor |
| Mounting Type: | Through Hole, Surface Mount | Part No: | 22D-9 |
| Operating Temperature: | -40℃~150℃ | Lead Material: | Tinned Copper, Nickel, Silver |
| Highlight: | Surface Mount Precision Analog Temperature Sensor,1s-15s Precision Analog Temperature Sensor,15s Precision Analog Temperature Sensor |
||

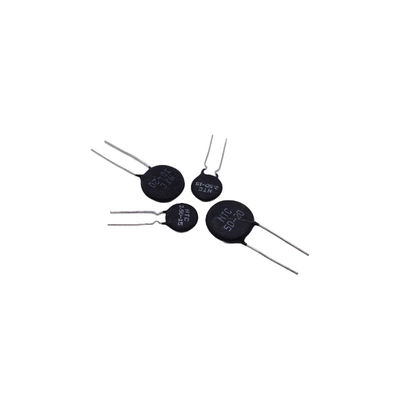

The NTC Thermal Resistor has a wide operating temperature range of -40℃~150℃. This makes it suitable for use in harsh environments where temperature fluctuations are common. It has a resistance range of 1Ω to 100MΩ, making it suitable for a wide range of temperature sensing and control applications.
The lead material used in the NTC Thermal Resistor is tinned copper, nickel, and silver, which are known for their high conductivity, durability, and ability to withstand high temperatures. This ensures that the thermistor probe is reliable and long-lasting, even in harsh environments.
The NTC Thermal Resistor is used in a wide range of applications, including temperature sensing and control in HVAC systems, automotive engines, and industrial equipment. It is also used in medical equipment, aerospace applications, and many other fields where temperature sensing and control are critical.
The NTC Thermal Resistor is easy to use and install, with a compact design that allows for easy integration into existing systems. Its high accuracy and reliability make it a popular choice among engineers and technicians who require precise temperature sensing and control.
In conclusion, the NTC Thermal Resistor is a highly reliable and accurate thermistor probe that is suitable for a wide range of temperature sensing and control applications. Its thermal time constant, operating temperature range, resistance range, and lead material make it an ideal choice for use in harsh environments where temperature fluctuations are common. It is easy to use and install, making it a popular choice among engineers and technicians who require precise temperature sensing and control.
| Technical Parameter | Value Range |
|---|---|
| Tolerance | ±1% to ±10% |
| Thermal Coefficient | -2% to -6% |
| Thermal Time Constant | 1s to 15s |
| Mounting Type | Through Hole, Surface Mount |
| Output | Analog Sensor |
| Part No | 22D-9 |
| Operating Temperature | -40℃~150℃ |
| Sample | Available |
| Customize | Provide Sample Services |
| Resistance Range | 1Ω to 100MΩ |
This product is an NTC Sensor, also known as a Thermal Resistor for NTC, or Negative Temperature Coefficient Resistor.
The NTC Thermal Resistor has a high tolerance range, varying from ±1% to ±10%, ensuring precise temperature measurements. Its thermal time constant ranges from 1s to 15s, making it ideal for applications that require rapid temperature response. Moreover, its wide resistance range, from 1Ω to 100MΩ, provides flexibility for different temperature sensing environments. The output of the NTC Thermal Resistor is in the form of an analog sensor, providing an accurate measurement of temperature variations.
With such excellent features, the NTC Thermal Resistor is suitable for various application occasions and scenarios. One of the most common applications of this product is in temperature sensing systems, such as thermostats, air conditioning systems, and refrigeration systems. It is also ideal for use in temperature compensation circuits, temperature control of power supplies, and temperature detection in automobiles.
The NTC Thermal Resistor is also widely used in household appliances such as ovens, refrigerators, and washing machines. It can also be utilized in medical equipment such as thermometers and incubators. Additionally, this product is suitable for use in industrial processes such as temperature monitoring in chemical reactors, furnace temperature control, and temperature sensing in food processing.
In conclusion, the NTC Thermal Resistor is a versatile product that provides accurate temperature measurements in various applications. Its high tolerance range, thermal time constant, and wide resistance range make it suitable for different environments. Its output as an analog sensor ensures precise temperature measurements. Therefore, the NTC Thermal Resistor is an essential component for temperature sensing and control systems.
Customize your NTC Thermistor with CL, originating from China with Part No. 22D-9. We provide sample services to ensure your product is tailored to your needs. The lead material is made up of tinned copper, nickel, and silver, and the output is an analog sensor. The thermal coefficient ranges from -2% to -6%. Trust in CL to provide you with the best NTC Thermistor, Coin Thermistor for your product customization needs.
The NTC Thermal Resistor is a temperature-sensitive resistor used for temperature measurement and control in various applications. It is designed to change its resistance based on the temperature it is exposed to. This product is suitable for use in temperature sensors, thermostats, and other temperature control systems.
Our technical support team is available to assist with any questions or issues related to the installation and use of the NTC Thermal Resistor. We offer services such as calibration, testing, and customization to meet your specific application requirements.
For more information on our product technical support and services, please contact us.
Product Packaging:
Shipping:
Here are some frequently asked questions and answers about CL NTC Thermal Resistor:
Q: What is CL NTC Thermal Resistor?
A: CL NTC Thermal Resistor is a type of thermistor that has a negative temperature coefficient. It is designed to measure temperature by changing its resistance in response to temperature changes.
Q: What is the temperature range of CL NTC Thermal Resistor?
A: CL NTC Thermal Resistor has a temperature range of -40°C to 125°C.
Q: What is the accuracy of CL NTC Thermal Resistor?
A: CL NTC Thermal Resistor has an accuracy of ±1% over the entire temperature range.
Q: What is the response time of CL NTC Thermal Resistor?
A: CL NTC Thermal Resistor has a response time of less than 10 seconds in still air.
Q: Where is CL NTC Thermal Resistor manufactured?
A: CL NTC Thermal Resistor is manufactured in China.
