| Tolerance: | ±1% To ±10% | Dissipation Factor: | 0.5mW/°C To 10mW/°C |
|---|---|---|---|

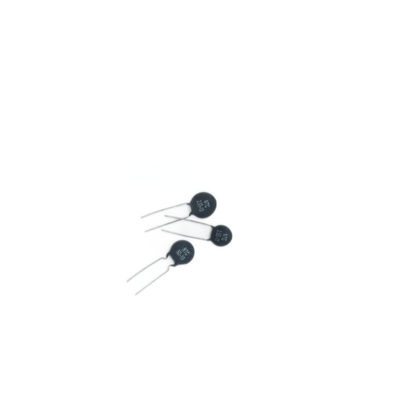

| Part No: | 22D-9 | Termination Style: | Axial Leads, Radial Leads, SMD Pads |
| Customize: | Provide Sample Services | Mounting Type: | Through Hole, Surface Mount |
| Sample: | Available | Usage: | Temperature Sensor |
| Highlight: | 22D-9 Thermal resistor,22D-9 Thermosensitive component,NTC Thermosensitive component |
||
The NTC Thermal Resistor has a tolerance range of ±1% to ±10%. This means that the resistance value of the resistor may vary within this range depending on the manufacturing process. The tolerance range is an important factor to consider when selecting a thermal resistor for a particular application as it affects the accuracy of the temperature measurement.
The lead material used in the NTC Thermal Resistor can be either Tinned Copper, Nickel or Silver. These materials are chosen for their good electrical conductivity and thermal conductivity properties. The choice of lead material also affects the thermal response time of the resistor as well as its resistance to corrosion and oxidation.
The NTC Thermal Resistor has a thermal coefficient of -2% to -6%. This means that the resistance of the resistor decreases as the temperature increases. This is a desirable property for temperature sensing applications as it allows the resistor to provide a linear response to changes in temperature.
The Dissipation Factor of the NTC Thermal Resistor ranges from 0.5mW/°C to 10mW/°C. This is a measure of the amount of power that the resistor can dissipate per degree Celsius of temperature change. A higher Dissipation Factor means that the resistor can dissipate more heat and is suitable for use in applications where the temperature changes rapidly.
| Technical Parameter | Value |
|---|---|
| Product Name | NTC Thermal Resistor |
| Termination Style | Axial Leads, Radial Leads, SMD Pads |
| Mounting Type | Through Hole, Surface Mount |
| Operating Temperature | -40℃~150℃ |
| Customize | Provide Sample Services |
| Dissipation Factor | 0.5mW/°C To 10mW/°C |
| Usage | Temperature Sensor |
| Thermal Coefficient | -2% To -6% |
| Keyword | NTC Thermal Probe, NTC Thermal Probe, Negative Temperature Coefficient Resistor |
| Tolerance | ±1% To ±10% |
| Resistance Range | 1Ω To 100MΩ |
One of the key features of this NTC thermal resistor is its thermal time constant, which ranges from 1 second to 15 seconds. This allows for accurate temperature readings that are updated quickly, making it ideal for use in applications where rapid temperature changes are common.
The operating temperature range of -40℃ to 150℃ makes it suitable for use in a wide range of applications, from industrial to automotive. The CL NTC Thermal Resistor is a thermistor probe that is highly sensitive to temperature changes, making it ideal for use in environments where temperature control is essential.
Some common applications for the CL NTC Thermal Resistor include temperature monitoring in HVAC systems, refrigeration units, and electric motors. It is also commonly used in medical equipment, such as incubators and temperature-controlled storage units.
The CL NTC Thermal Resistor is a highly reliable and accurate NTC sensor that can be used in a variety of settings. It is a cost-effective solution for those who require precise temperature monitoring in their systems.
The NTC Thermal Resistor product offers technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with product selection, installation, and troubleshooting. We also offer customization options to meet specific customer requirements. Our services include product training, warranty support, and repair services. Contact us for more information on how we can assist you with your thermal resistor needs.
Product Packaging:
Shipping:
Q: What is an NTC thermal resistor?
A: An NTC thermal resistor is a sensor that measures temperature changes by detecting changes in resistance. It is commonly used in temperature control circuits.
Q: What is the brand name of this NTC thermal resistor?
A: The brand name of this NTC thermal resistor is CL.
Q: Where is this NTC thermal resistor manufactured?
A: This NTC thermal resistor is manufactured in China.
Q: What is the temperature range that this NTC thermal resistor can measure?
A: The temperature range that this NTC thermal resistor can measure is -55°C to 125°C.
Q: What is the accuracy of this NTC thermal resistor?
A: The accuracy of this NTC thermal resistor is ±1°C at 25°C.
