MEGA Fuse Holder Bolt-Down Series High-for battery

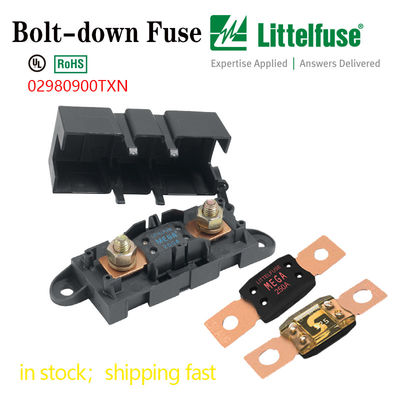

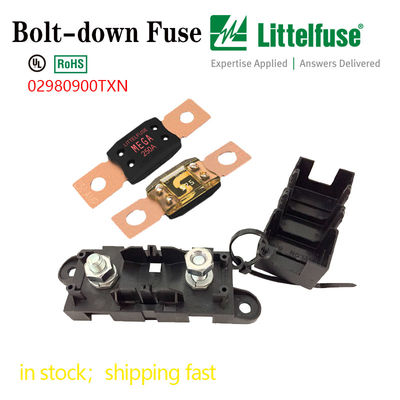

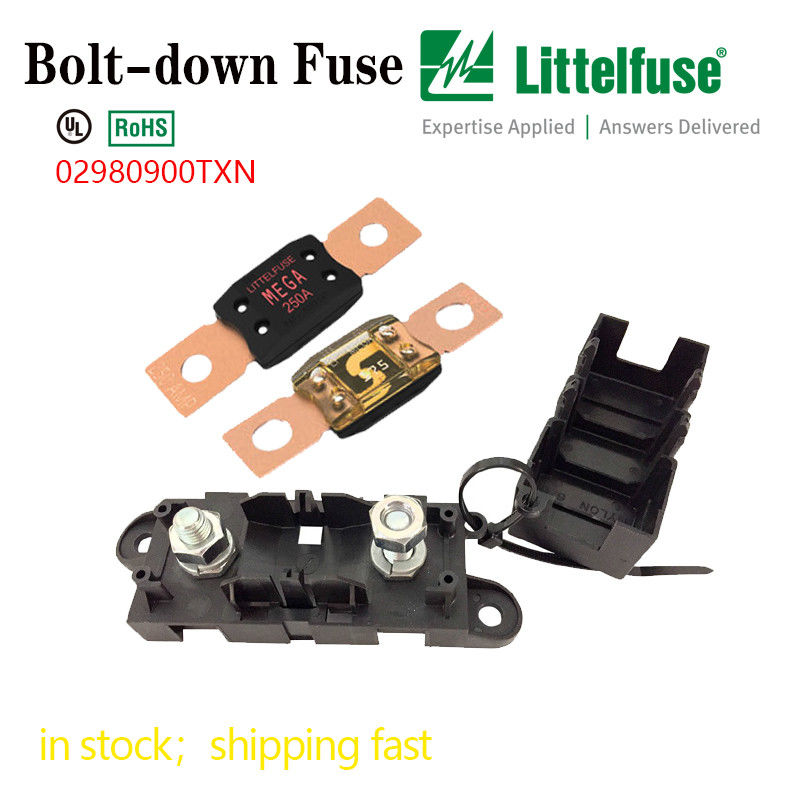

Large Image : MEGA Fuse Holder Bolt-Down Series High-for battery

Product Details:

Place of Origin:	CHIANA
Brand Name:	littelfuse
Certification:	E71747
Model Number:	MAGE

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	3USD
Packaging Details:	200x200x200cm
Payment Terms:	T/T
Supply Ability:	300000

Contact Now

MEGA Fuse Holder Bolt-Down Series High-for battery

Description

Highlight:

MEGA Fuse Holder

Battery Fuse Holder

MEGA Fuse Holder Bolt-Down Series High-for battery 0

Description

Specifications

Agency Approval Shock: VS-005002/VS-005005

Current Rating Max: 500A

Fuse Type: MEGA (298)

Humidity: 97%±3% relative humidity

at 40°C±3C for 16 hrs

Flammibility Rating: UL-94 V-2

Ingress Protection: Dust Protection

Input Terminals: M8 Stud, M6 Stud

Mounting Method: Bolt-Down, M6 Slots / M6 Mounting Holes

Output Terminals: M8 Stud, M6 Stud

Recommended Torque: 8mm Hex Nut: 12-18 Nm (106-159 IN-LBS)

6mm Hex Nut: 8-14 Nm (71-124 IN-LBS)

Max Voltage Rating: 70VDC

Features & Benefits

Compatible with MEGA® bolt-down fuses (sold

separately unless indicated)

• Glass-filled thermoplastic body houses M8 or M6 input

and output terminals

• Interlocking pins on the sides of the fuse holder let you

connect additional MEGA® 298 Bolt-Down Series fuse

holders to create a multi-fuse block

• Base styles available with M6 mounting holes or

extended M6 x 15mm slots

• Included UL 94 rated protective cover has 6 available

locations for openings to accommodate various cable

entry needs (actual openings vary by part number)

• Configurations may also include a thermoplastic tether,

insulators, ratchet fasteners and/or mounting hardware

(see part numbers for details)

Dimensions

Tag:

High Current Fuse Holder,

M6 Slots Fuse Holder,

Bolt Down Fuse Holder
