Littelfuse 0298200 Bolt Down Auto Fuse 200A Time Delay 32V 298 Series, MEGA

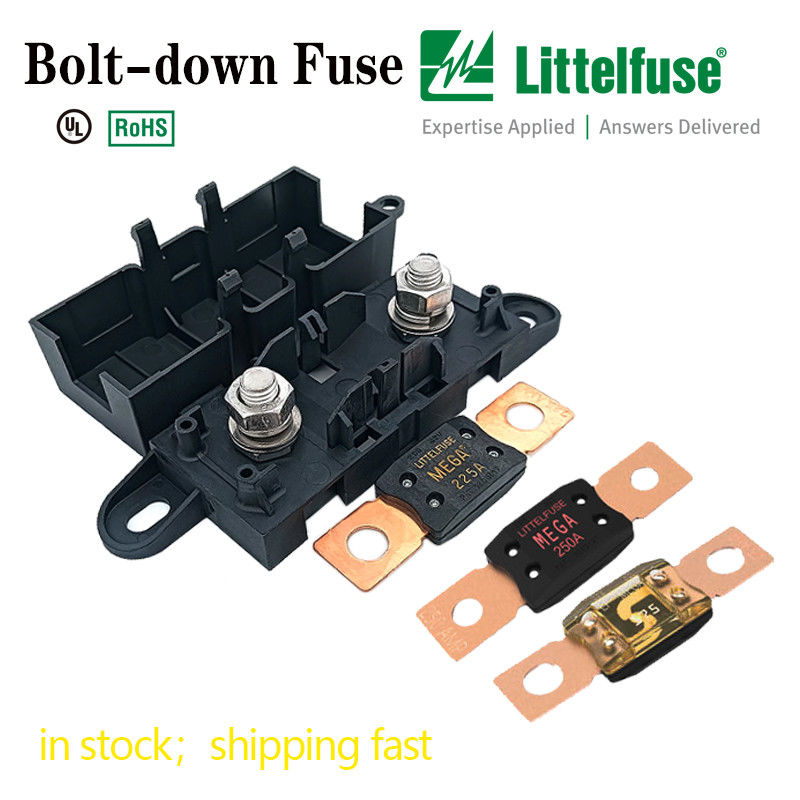

Large Image : Littelfuse 0298200 Bolt Down Auto Fuse 200A Time Delay 32V 298 Series, MEGA

Product Details:

Place of Origin:	CHIANA
Brand Name:	littelfuse
Certification:	E71747
Model Number:	MAGE

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	3USD
Packaging Details:	200x200x200cm
Payment Terms:	T/T
Supply Ability:	300000

Contact Now

Littelfuse 0298200 Bolt Down Auto Fuse 200A Time Delay 32V 298 Series, MEGA

Description

Highlight:

200A Bolt Down Auto Fuse

298 Series Bolt Down Auto Fuse

32V Bolt Down Auto Fuse

Description
Littelfuse 0298200 Bolt Down Auto Fuse 200A Time Delay 32V 298 Series, MEGA

MEGA® SLO-BLO® automotive fuses employ diffusion pill technology

to provide time-delay circuit protection. MEGA fuses are ideal for

use on batteries, alternators, and heavy gauge wire harnesses that

experience large inrushes of current. The MEGA SLO-BLO fuses with

ratings of 40 A to 250 A ensure continuous current flow. Use MEGA

fuses with ratings of 300 A to 500 A only for short circuit protection.
Features & Benefits

SEPCIFACATONGS

Voltage Rating: 32 V DC

Interrupting Rating: 2000 A @ 32 V DC

Recommended

Environmental Temperature:

–40 ˚C to +125 ˚C

Terminals Material: Copper (Silver plated copper available)

Housing Material: PPA-GF33HS

(U.L. 94 Flammability rating - HB)

Clear Top Housing Material: PES (top)

(U.L. 94 Flammability rating - V0)

PPA-GF33HS (bottom)

(U.L. 94 Flammability rating - HB)

Mounting Torque M6: 8-14 Nm

Mounting Torque M8: 12-18 Nm

Comply With: ISO 8820-5

Dimensions

Littelfuse 0298200 Bolt Down Auto Fuse 200A Time Delay 32V 298 Series, MEGA 2
