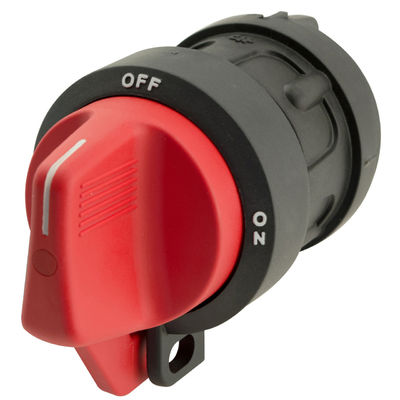

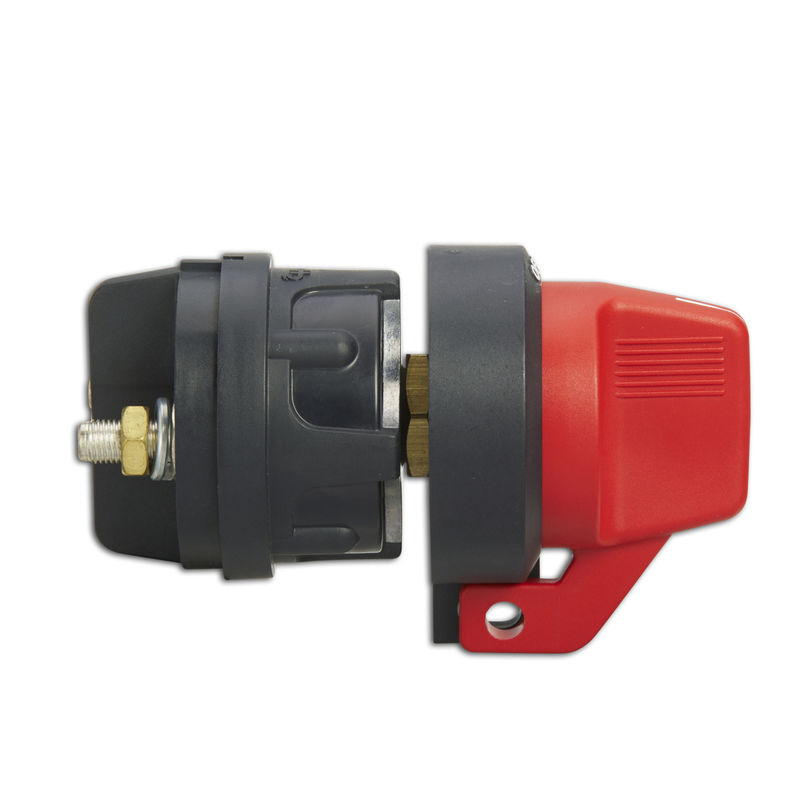

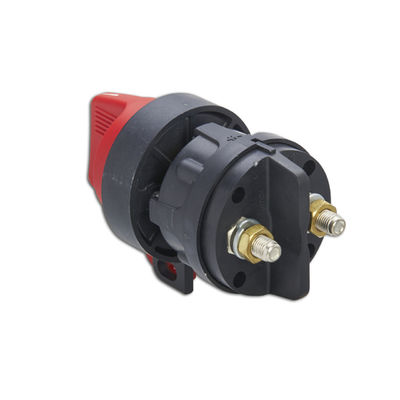

On / Off Markings Red Knob 75920 Battery Master Switch 36 Volt

Large Image : On / Off Markings Red Knob 75920 Battery Master Switch 36 Volt

Product Details:

Place of Origin:	CHIANA
Brand Name:	TONGLI
Model Number:	75920

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	90
Packaging Details:	300x200x200cm
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	300000

Contact Now

On / Off Markings Red Knob 75920 Battery Master Switch 36 Volt

Description

Highlight:

75920 36 volt master disconnect switch

75920 Battery Master Switch

Battery Master Switch 36 Volt

75920 SERIES
36V MASTER BATTERY DISCONNECT SWITCH

Applications
Heavy-Duty Truck
Construction
Agricultural Equipment
Material Handling
Mining
Off-Road Vehicles
Emergency Vehicles
Marine
Features and Benefits
On / Off Markings Red Knob 75920 Battery Master Switch 36 Volt 0

High amperage continuous current capacity of 400A with

a single 4/0 cable at 12V DC, 300A at 24V DC, or 200A at

36V DC

• IPX8-rated waterproof battery disconnect switch for

external mounting on vehicles as well as installation on

boats and marine equipment

• Can be used in high-side or low-side applications

• Black or gray thermoplastic housing with a UL 94 V-0 rating

• Tested per SAE J1455 for salt, calcium chloride, and

magnesium chloride, delivering a rust- and corrosion-free

high-amp battery disconnect

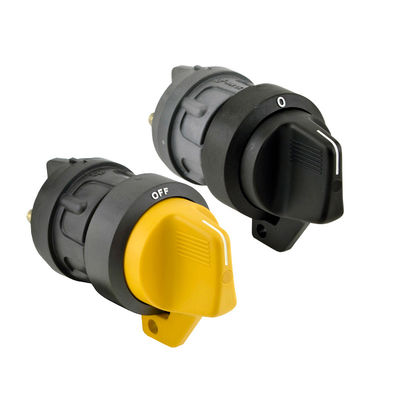

• Large red, yellow, or black knob makes the master battery

disconnect switch easy to operate while wearing gloves,

and the 90° switch travel makes it simple to identify the

switch position

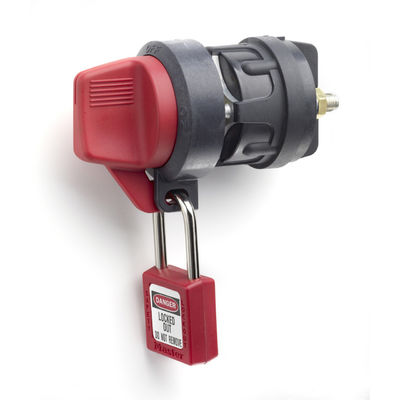

• Built-in lock-out/tag-out (LOTO) satisfies OSHA

requirements for an energy isolation device

• Large divider on the base prevents accidental shorting of

high energy cables

On / Off Markings Red Knob 75920 Battery Master Switch 36 Volt 1
