75920 SERIES

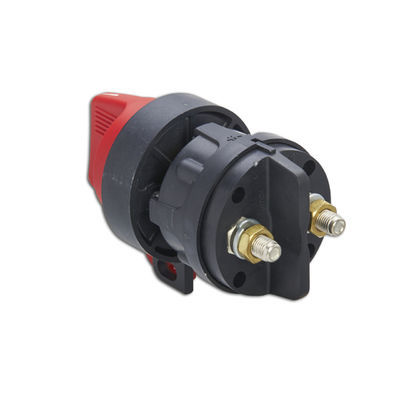

36V Master Battery Disconnect Switch 75920 for Off-Road Vehicles
High amperage continuous current capacity of 400A with
a single 4/0 cable at 12V DC, 300A at 24V DC, or 200A at
36V DC
Applications
Heavy-Duty Truck
Construction
Agricultural Equipment
Material Handling
Mining
Off-Road Vehicles
Emergency Vehicles
Marine
Features and Benefits
High amperage continuous current capacity of 400A with
a single 4/0 cable at 12V DC, 300A at 24V DC, or 200A at
36V DC
• IPX8-rated waterproof battery disconnect switch for
external mounting on vehicles as well as installation on
boats and marine equipment
• Can be used in high-side or low-side applications
• Black or gray thermoplastic housing with a UL 94 V-0 rating
• Tested per SAE J1455 for salt, calcium chloride, and
magnesium chloride, delivering a rust- and corrosion-free
high-amp battery disconnect

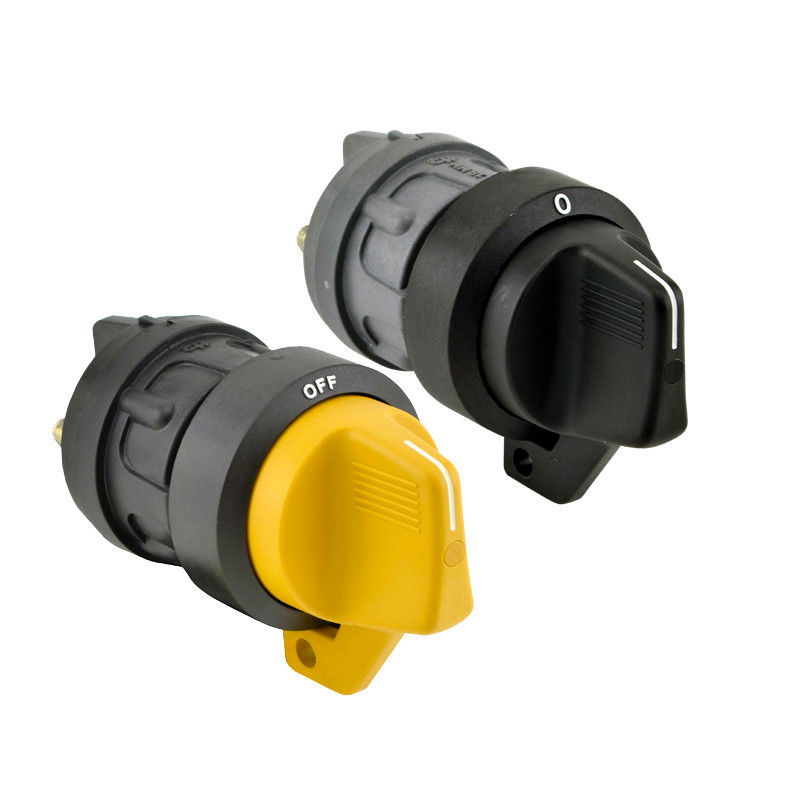

• Large red, yellow, or black knob makes the master battery
disconnect switch easy to operate while wearing gloves,
and the 90° switch travel makes it simple to identify the
switch position
• Built-in lock-out/tag-out (LOTO) satisfies OSHA
requirements for an energy isolation device
• Large divider on the base prevents accidental shorting of
high energy cables
