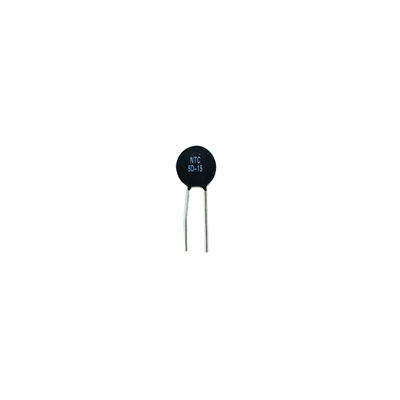

Through Hole Surface Mount NTC 5D-15 Thermistor Solution For Temperature Sensing

Product Description:

The NTC Thermal Resistor is a temperature-sensitive resistor designed to provide accurate and reliable temperature measurements in a wide range of applications. With a resistance range of 1Ω to 100MΩ, this product offers versatility and precision in temperature sensing.

Whether you require through-hole or surface mount mounting type, the NTC Thermal Resistor can easily accommodate your specific needs. Its flexibility in mounting options makes it suitable for various electronic designs and configurations.

Operating within a wide temperature range of -40℃ to 150℃, this temperature-sensitive resistor ensures consistent and precise performance even in extreme temperature conditions. Its reliability and stability make it ideal for applications where temperature fluctuations are common.

As an analog sensor, the NTC Thermal Resistor provides continuous and real-time temperature data, making it a valuable component in temperature monitoring systems. Its output is highly accurate and can be easily integrated into existing sensor networks for enhanced temperature control.

The thermal coefficient of the NTC Thermal Resistor ranges from -2% to -6%, ensuring that the resistance changes predictably with temperature variations. This characteristic makes it a reliable and efficient coin thermistor for temperature-sensitive applications.

Features:

• Product Name: NTC Thermal Resistor
• Resistance Range: 1Ω To 100MΩ
• Output: Analog Sensor
• Thermal Coefficient: -2% To -6%
• Sample: Available
• Usage: Temperature Sensor

Technical Parameters:

Applications:

Thermally Sensitive Resistor, NTC Sensor, Thermal Resistor for NTC

The CL 5D9-D13-D15-D20 NTC Thermal Resistor, part number 22D-9, is a high-quality product originating from CHINA. This versatile resistor is designed to provide accurate and reliable temperature sensing in a variety of applications.

With a dissipation factor ranging from 0.5mW/°C to 10mW/°C, the CL NTC Thermal Resistor is capable of efficiently converting temperature changes into electrical signals. This makes it ideal for use in temperature monitoring systems, thermal management solutions, and temperature compensation circuits.

The resistor is available with different termination styles, including Axial Leads, Radial Leads, and SMD Pads, offering flexibility in installation and compatibility with various circuit designs. The thermal coefficient of -2% to -6% ensures consistent and precise temperature measurements across a wide range of operating conditions.

Whether you require Through Hole or Surface Mount mounting types, the CL NTC Thermal Resistor is suitable for a wide range of product application occasions and scenarios. It can be used in automotive electronics, industrial controls, consumer electronics, and more.

Thanks to its reliable performance and accurate temperature sensing capabilities, the CL NTC Thermal Resistor is a trusted choice for engineers and designers looking to incorporate thermally sensitive resistors into their projects.

Customization:

Product Customization Services for the NTC Thermal Resistor:

Brand Name: CL

Model Number: 5D9-D13-D15-D20

Place of Origin: CHINA

Operating Temperature: -40℃~150℃

Thermal Coefficient: -2% To -6%

Lead Material: Tinned Copper, Nickel, Silver

Part No: 22D-9

Dissipation Factor: 0.5mW/°C To 10mW/°C

Keywords: Thermally Sensitive Resistor, Temperature Sensitive Resistor, Thermistor Probe

Support and Services:

The NTC Thermal Resistor product comes with comprehensive technical support and services to assist customers with any product-related inquiries or issues. Our dedicated support team is available to provide guidance on product installation, calibration, and troubleshooting. Additionally, we offer maintenance services to ensure optimal performance and longevity of the NTC Thermal Resistor.

Packing and Shipping:

Product Packaging and Shipping for NTC Thermal Resistor:

The NTC Thermal Resistor is carefully packaged in a sturdy cardboard box to ensure safe delivery. Each resistor is sealed in a protective plastic bag to prevent any damage during shipping. The package includes a user manual with detailed instructions on how to use the resistor effectively.

For shipping, we use trusted courier services to deliver the product to your doorstep. The package is securely sealed and labeled with your shipping details to avoid any mishandling during transit. You can track your shipment using the provided tracking number to know the exact delivery date.

FAQ:

Q: What is the brand name of this NTC Thermal Resistor?

A: The brand name is CL.

Q: What are the model numbers available for this NTC Thermal Resistor?

A: The available model numbers are 5D9, D13, D15, and D20.

Q: Where is this NTC Thermal Resistor manufactured?

A: This product is manufactured in China.

Q: What is the temperature range for this NTC Thermal Resistor?

A: The temperature range varies based on the specific model number. Please refer to the product specifications for detailed information.

Q: Are these NTC Thermal Resistors suitable for industrial applications?

A: Yes, these NTC Thermal Resistors are suitable for a wide range of industrial applications due to their high quality and reliability.
