Product Description:

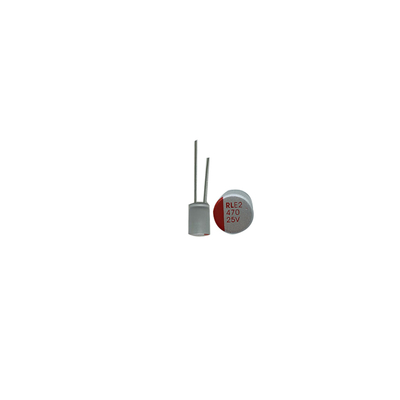

The Solid Aluminum Electrolytic Capacitor is a high-quality electronic component designed for various applications where reliability and performance are essential. This capacitor is commonly known as an Al Electrolytic Cap and is specifically constructed with solid aluminum materials to ensure durability and efficiency.
With a capacitance of 1uF, this Solid Aluminum Electrolytic Capacitor is suitable for filtering and smoothing applications in electronic circuits. It is capable of handling ripple currents of up to 4.2A, making it ideal for power supply and signal processing circuits where stable voltage levels are crucial.
The Surface Mount mounting type of this capacitor allows for easy and secure installation on circuit boards, saving valuable space and simplifying the assembly process. The compact dimensions of 6.3mm X 5.4mm further enhance its suitability for space-constrained applications without compromising performance.
As a Polarized capacitor, the Solid Aluminum Electrolytic Capacitor must be connected with the correct polarity to ensure proper functionality and prevent damage. Care should be taken during installation to observe the polarity markings and adhere to the specified orientation.
In summary, the Solid Aluminum Electrolytic Capacitor is a reliable and efficient component that offers high capacitance, ripple current handling capabilities, and compact dimensions for a wide range of electronic applications. Its solid aluminum construction ensures longevity and performance, making it a valuable choice for engineers and hobbyists alike.
Technical Parameters:
| Lead Spacing |
2.5mm |
| Ripple Current |
4.2A |
| Mounting Type |
Surface Mount |
| Capacitance |
1uF |
| Leakage Current |
0.01CV Or 3μA, Whichever Is Greater |
| Series |
ECOS2DA |
| Polarization |
Polarized |
| Tolerance |
±20% |
| Dimensions |
6.3mm X 5.4mm |
| Esr (Equivalent Series Resistance) |
0.035 Ohms @ 100kHz |
Applications:
The SLFCF Solid Aluminum Electrolytic Capacitor is a high-quality electronic component designed for various applications that require reliable energy storage and signal filtering. With a ripple current rating of 4.2A, this capacitor is ideal for use in power supply circuits where smooth and stable DC voltage output is essential.
Thanks to its polarization feature, the SLFCF Solid Aluminum Capacitor ensures proper electrical functionality by maintaining a specific orientation in the circuit. This makes it suitable for applications where signal integrity and consistency are crucial, such as audio amplifiers, power inverters, and industrial control systems.
With a long operational lifetime of 2000 hours at 105°C, this capacitor offers extended durability and performance stability even under harsh operating conditions. Whether used in automotive electronics, telecommunications equipment, or LED lighting systems, the SLFCF Solid Aluminum Capacitor can withstand demanding environments while maintaining its effectiveness.
The lead spacing of 2.5mm on this capacitor facilitates easy installation and soldering, making it convenient for both manual and automated assembly processes. This feature is particularly beneficial in mass production scenarios where efficiency and accuracy are key considerations.
Furthermore, the 50V voltage rating of the SLFCF Solid Aluminum Electrolytic Capacitor ensures compatibility with a wide range of electronic devices and systems. Whether deployed in consumer electronics, medical devices, or industrial machinery, this capacitor provides reliable energy storage and voltage regulation capabilities.
Customization:
Customize your Solid Aluminum Electrolytic Capacitor from SLFCF with the following options:
- Lifetime: 2000 Hours @ 105°C
- Capacitance: 1uF
- Operating Temperature: -55°C To +105°C
- Mounting Type: Surface Mount
- Polarization: Polarized
Enhance your Solid Aluminum Capacitor, Aluminum Solid Capacitor, or Solid Electrolytic Capacitor to meet your specific requirements.
Support and Services:
The Product Technical Support and Services for the Solid Aluminum Electrolytic Capacitor include:
- Assistance with product selection and specifications
- Guidance on proper installation and usage
- Troubleshooting support for any issues or concerns
- Information on maintenance and care for optimal performance
Packing and Shipping:
Product: Solid Aluminum Electrolytic Capacitor
Description: This high-quality solid aluminum electrolytic capacitor is designed for various electronic applications.
Packaging: The capacitor is securely packed in a static-resistant bag to prevent any damage during shipping.
Shipping: We use reliable shipping services to ensure the safe and timely delivery of the product to your doorstep.
FAQ:
Q: What is the brand name of this solid aluminum electrolytic capacitor?
A: The brand name of this capacitor is SLFCF.
Q: What is the voltage rating of the SLFCF solid aluminum electrolytic capacitor?
A: The voltage rating of this capacitor varies depending on the specific model and can range from 16V to 450V.
Q: What is the operating temperature range for the SLFCF solid aluminum electrolytic capacitor?
A: The operating temperature range for this capacitor is typically between -40°C to +105°C.
Q: Are these solid aluminum electrolytic capacitors suitable for high-frequency applications?
A: Yes, the SLFCF capacitors are designed to be suitable for high-frequency applications due to their stable performance and low ESR.
Q: Can the SLFCF solid aluminum electrolytic capacitors be used in automotive electronics?
A: Yes, these capacitors are often used in automotive electronics due to their reliability and performance under harsh operating conditions.
