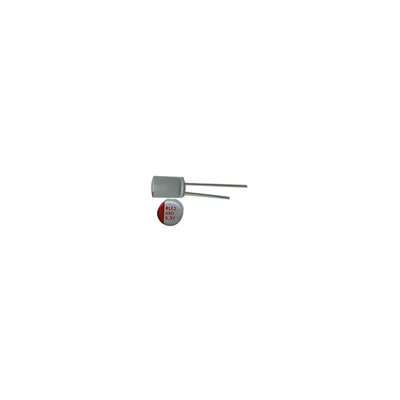

Efficient 680UF6.3V Solid Aluminum Electrolytic Capacitor SMD Type

Product Description:

The Solid Aluminum Electrolytic Capacitor is a high-quality component designed for various electronic applications. Known for its reliability and performance, this capacitor offers exceptional features to enhance circuit functionality.

With a Leakage Current of 0.01CV or 3μA, whichever is greater, this Aluminum Solid Capacitor ensures efficient operation and minimal power loss. This attribute is crucial for maintaining the integrity of the circuit and preventing unnecessary energy wastage.

The Lead Spacing of 2.5mm allows for easy installation and connection within circuit boards. This spacing feature provides convenience during the assembly process, enabling swift and secure placement of the capacitor in the designated area.

Operating within a Tolerance range of ±20%, this Aluminum Electrolytic Capacitor guarantees consistent performance and accurate functionality. The tight tolerance ensures that the capacitor operates within specified limits, contributing to the overall precision of the electronic system.

Designed to withstand extreme conditions, the Operating Temperature range of -55°C to +105°C makes this capacitor suitable for a wide range of environments. Whether exposed to freezing temperatures or high heat, this Aluminum Electrolyte Capacitor maintains its performance and reliability, ensuring stability in diverse operating conditions.

With a Voltage Rating of 50V, this capacitor can handle moderate voltage levels with ease, making it suitable for various electronic applications that require reliable energy storage and discharge capabilities. The voltage rating ensures that the capacitor can function safely and effectively within its specified limits.

Overall, the Solid Aluminum Electrolytic Capacitor is a versatile and dependable component that offers superior performance and durability. Its advanced features, including low leakage current, optimal lead spacing, tight tolerance, wide operating temperature range, and suitable voltage rating, make it an ideal choice for demanding electronic projects and applications.

Features:

• Product Name: Solid Aluminum Electrolytic Capacitor
• Capacitance: 1uF
• Mounting Type: Surface Mount
• Dimensions: 6.3mm X 5.4mm
• Voltage Rating: 50V
• Leakage Current: 0.01CV Or 3μA, Whichever Is Greater

Technical Parameters:

Applications:

The SLFCF Aluminum Elec Cap is a high-quality solid aluminum electrolytic capacitor designed for various applications where a reliable and long-lasting capacitor is required. With its unique polarization, this Solid Al Cap is ideal for circuits where a specific voltage direction is needed.

One of the key features of this Aluminum Solid Electrolyte Capacitor is its impressive ripple current rating of 4.2A, making it suitable for applications with fluctuating current loads. This attribute ensures stable and smooth operation even in dynamic electrical systems.

The long lifetime of 2000 hours at 105°C makes the SLFCF capacitor a durable choice for projects that require extended operational hours or high-temperature environments. This reliability is essential for critical systems where component failure is not an option.

With a lead spacing of 2.5mm, this Solid Al Cap offers easy integration into various circuit layouts, providing flexibility in design and assembly processes. The optimal lead spacing simplifies installation and maintenance, saving time and effort during production.

Furthermore, the low leakage current of 0.01CV or 3μA, whichever is greater, ensures efficient energy usage and prevents unnecessary power loss. This feature is crucial for applications where power efficiency is a priority, such as in energy-sensitive electronics or battery-powered devices.

The SLFCF Aluminum Elec Cap is suitable for a wide range of occasions and scenarios, including industrial automation, power supplies, automotive electronics, telecommunications, and more. Its robust construction and reliable performance make it a versatile choice for demanding applications that require a high-quality solid aluminum electrolytic capacitor.

Customization:

Product Customization Services for the Solid Aluminum Electrolytic Capacitor:

Brand Name: SLFCF

Lead Spacing: 2.5mm

Ripple Current: 4.2A

Dimensions: 6.3mm X 5.4mm

Mounting Type: Surface Mount

Tolerance: ±20%

Keywords: Aluminum Solid Electrolyte Capacitor, Solid Aluminum Capacitor, Aluminum Electrolyte Capacitor

Support and Services:

Our Product Technical Support and Services for the Solid Aluminum Electrolytic Capacitor include:

- Expert assistance with product installation and usage

- Troubleshooting guidance for any issues encountered

- Access to detailed product specifications and datasheets

- Recommendations for optimal product performance

- Warranty information and assistance with returns or exchanges

- Updates on product advancements and improvements

Packing and Shipping:

Product Packaging:

Each Solid Aluminum Electrolytic Capacitor is carefully packaged in a protective plastic tray to ensure safe transportation and handling. The tray is then placed in a sturdy cardboard box, which is labeled with product information and handling instructions.

Shipping:

For shipping, the Solid Aluminum Electrolytic Capacitors are securely packed in a shipping box with cushioning materials to prevent any damage during transit. The box is sealed and labeled with the necessary shipping information, including the recipient's address and tracking number for easy monitoring of the shipment.

AP-CON MRPE SERIES SPECIFICATION


1. Application

This specification shall be specified to conductive polymer aluminum solid electrolytic capacitors of PE series.

2. Composition of part number

6R3 MRPE 221 M 0606

Rated voltage Series code Capacitance Cap tolerance Size code Special code

2. 1 Rated voltage code

Table 1 Rated voltage and surge voltage

2.2 Capacitance code

Ta le 2 Rate capacitance

2.3 Capacitance tolerance code
Table 3 Capacitance tolerance

Cap tolerance code	Cap tolerance
M	20%

 2.4 Size code
 Ta le 4 Dimension of ra ial type capacitors


3. Rating

3. 1 Category temperature range -55 to +105 oC

3.2 Surge voltage

Rated voltage * 1.15

3.3 Rated ripple current

Rated ripple current shall be in accordance with standard ratings list. These current are rms values of sine wave of 100kHz at 105 oC.

The electrical and mechanical performance and testing method

4. 1 Measurement condition

Each measurement shall be conducted at a temperature of 15 to 35 oC, and relative humidity of 45 to 85%. Furthermore, these measurements shall be preferably conducted at a temperature of 20土2 oC, and relative humidity of 60 to 70%, while the capacitors shall be kept enough time in the measuring temperature.

4.2 Voltage treatment

If leakage current is doubtful, measure it after performing voltage treatment, which shall contain the following steps:

( 1) Applied DC rated voltage to the capacitors for 60 minutes at 105土2 oC.

(2) Cooled down to room temperature with applying voltage.

(3) Discharged through a resistor of approximately 1Ω/V.

4.3 Electrical performance

4.3. 1 Tolerance on rated capacitance

Rated capacitance shall meet within -20% to +20% (M) tolerance against the rated capacitance measured at 120Hz土10% at 20土2 oC.

4.3.2 Leakage current

DC rated voltage shall be applied between anode and cathode lead wire terminations of a capacitor through 1kΩ protective resistance, and the leakage current shall be less than or equal to the value listed in table 5 after 2 minutes with the voltage reaching the rated value at 20土2 oC.

If the value is doubtful, measure the leakage current after performing voltage treatment as described in section 6.2.

4.3.3 Tangent of loss angle (tanδ)

Tanδ values shall be less than or equal to 0. 10 measured at 120Hz土10% at 20土2 oC.

4.3.4 Equivalent Series Resistance (ESR)

ESR at 100kHz measured under the following conditions listed in Table 8 shall be less than or equal to the value in Table 5.

        4.3.5 Impedance at high and low temperature

Impedance at 100kHz at -55土3 oC or 105土2 oC shall meet the values listed in Table 9.

  Table 9 Impedance at low or high temperature

4.4 Mechanical performance

4.4. 1 Pull strength of lead wire terminations

With the body of a capacitor fixed, the load listed in Table 10 shall be applied to the lead wire termination in its draw out direction, gradually up to the specified value and held for 10土1 seconds. After this test, that capacitor shall not appear any change defective in use.

Ta le 10 Pull strength loa of lea wire terminations


  4.4.2 Bending strength of lead wire terminations

Bending strength load listed in Table 11 shall be hung at the end of the lead wire termination, and the body of a capacitor shall be bent 90o and return to its original position. This operation shall be performed around 2 to 3 seconds. Then the body shall be bent 90°at the opposite direction and return to its original position at same speed. At this test, that capacitor shall no appear any change defective in use.

Ta le 11 Ben ing strength loa of lea wire terminations


FAQ:

Q: What is the brand name of this aluminum electrolytic capacitor?

A: The brand name of this capacitor is SLFCF.

Q: What is the voltage rating of the Solid Aluminum Electrolytic Capacitor?

A: The voltage rating of this capacitor is [insert voltage rating here].

Q: What is the capacitance value of the Solid Aluminum Electrolytic Capacitor?

A: The capacitance value of this capacitor is [insert capacitance value here].

Q: What is the operating temperature range for this Solid Aluminum Electrolytic Capacitor?

A: The operating temperature range for this capacitor is [insert temperature range here].

Q: Can the Solid Aluminum Electrolytic Capacitor be used in high-frequency applications?

A: Yes, this capacitor is suitable for high-frequency applications.
