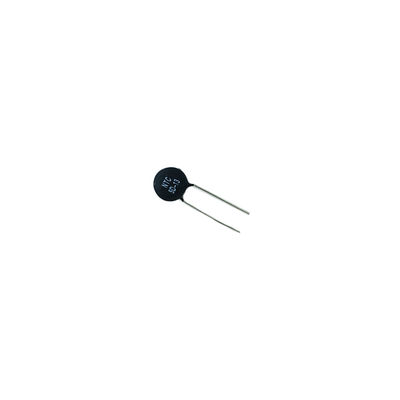

Product Description:
The NTC Thermal Resistor, also known as a thermally sensitive resistor or NTC thermistor, is a specialized type of resistor that exhibits a decrease in resistance with an increase in temperature. This unique characteristic makes it an essential component in various applications where temperature sensing and control are required.
The Thermal Coefficient of the NTC Thermal Resistor ranges from -2% to -6%, allowing for precise temperature measurements and control. With its high sensitivity to temperature changes, this NTC sensor is ideal for use in temperature compensation circuits, temperature monitoring systems, and thermal protection devices.
The Resistance Range of the NTC Thermal Resistor is from 1Ω to 100MΩ, providing a wide range of resistance values to suit different circuit requirements. This versatility makes it suitable for use in diverse electronic devices and systems where temperature plays a critical role in performance and reliability.
The Part No for this NTC Thermal Resistor is 22D-9, which serves as a unique identifier for easy reference and ordering. Whether you are looking to replace an existing component or incorporate it into a new design, the Part No ensures that you receive the correct NTC Thermal Resistor for your specific application.
Furthermore, samples of the NTC Thermal Resistor are available, allowing you to evaluate its performance and compatibility with your project before making a larger purchase. This sample availability ensures that you can confidently integrate the NTC Thermal Resistor into your design without concerns about its suitability or functionality.
Features:
- Product Name: NTC Thermal Resistor
- Part No: 22D-9
- Dissipation Factor: 0.5mW/°C To 10mW/°C
- Sample: Available
- Customize: Provide Sample Services
- Thermal Coefficient: -2% To -6%
Technical Parameters:
| Attribute |
Value |
| Usage |
Temperature Sensor |
| Tolerance |
±1% To ±10% |
| Thermal Coefficient |
-2% To -6% |
| Termination Style |
Axial Leads, Radial Leads, SMD Pads |
| Mounting Type |
Through Hole, Surface Mount |
| Thermal Time Constant |
1s To 15s |
| Dissipation Factor |
0.5mW/°C To 10mW/°C |
| Lead Material |
Tinned Copper, Nickel, Silver |
| Customize |
Provide Sample Services |
| Output |
Analog Sensor |
Applications:
The CL NTC Thermal Resistor, available in models 5D9, D13, D15, and D20, is a high-quality product originating from China. As a Negative Temperature Coefficient Resistor (NTC Sensor), this device is designed to provide accurate temperature sensing capabilities in various applications.
The CL NTC Thermal Resistor is suitable for a wide range of product application occasions and scenarios due to its versatile features and reliable performance. Its output as an Analog Sensor makes it ideal for use in temperature monitoring and control systems where precise temperature measurements are essential.
With termination styles including Axial Leads, Radial Leads, and SMD Pads, the CL NTC Thermal Resistor offers flexibility in installation and integration, catering to different design requirements. The product's Thermal Time Constant ranging from 1s to 15s ensures responsive and efficient temperature sensing, making it suitable for dynamic environments.
Whether it is for industrial automation, HVAC systems, consumer electronics, automotive applications, or medical devices, the CL NTC Thermal Resistor, with part number 22D-9, proves to be a dependable choice. Its temperature-sensitive nature allows for precise and reliable temperature measurements, contributing to the overall efficiency and safety of the system it is integrated into.
Furthermore, the availability of samples makes it convenient for engineers and designers to test and evaluate the CL NTC Thermal Resistor before full-scale implementation, ensuring compatibility and optimal performance in their specific application scenarios.
Customization:
Product Customization Services for the NTC Thermal Resistor:
Brand Name: CL
Model Number: 5D9-D13-D15-D20
Place of Origin: CHINA
Output: Analog Sensor
Dissipation Factor: 0.5mW/°C To 10mW/°C
Customize: Provide Sample Services
Resistance Range: 1Ω To 100MΩ
Thermal Coefficient: -2% To -6%
Support and Services:
Our Product Technical Support and Services for the NTC Thermal Resistor include:
- Assistance with product installation and setup
- Troubleshooting and diagnostics support
- Warranty information and claims
- Product documentation and resources
- Online technical support resources and FAQs
- Product training and webinars for customers
Packing and Shipping:
Product Name: NTC Thermal Resistor
Description: High-quality NTC thermal resistor used for temperature sensing applications.
Package Includes: NTC Thermal Resistor x 1
Shipping: This product will be carefully packaged to ensure safe delivery to your address. We offer standard and expedited shipping options.
FAQ:
Q: What is the brand name of this NTC Thermal Resistor?
A: The brand name is CL.
Q: What are the available model numbers for this NTC Thermal Resistor?
A: The available model numbers are 5D9, D13, D15, and D20.
Q: Where is this NTC Thermal Resistor manufactured?
A: This product is manufactured in China.
Q: What is the temperature sensing range of this NTC Thermal Resistor?
A: The temperature sensing range varies depending on the specific model number.
Q: Are these NTC Thermal Resistors suitable for high-temperature applications?
A: The suitability for high-temperature applications may vary based on the specific model number and specifications.
