High Voltage Gas Discharge Tube GDT S Brand Gas Tube For Circuit Protection PCB Board

10KA 230V GDT Gas Discharge Tube GDT High Voltage S Brand Gas Tube For Circuit Protection PCB BoardPopular​

A gas discharge tube GDT, is a glass-enclosed device that is sealed and contains a special gas mixture which is trapped between two electrodes.(ceramic ,electrode electronic powder , and special inert gas .).Gas discharge tubes conduct electrical current after they become ionized by a high voltage spike, can conduct a relatively high amount of current for their size and can handle some very large transients or several smaller transients. Gas discharge tubes also take a long time to trigger, which permits a higher voltage spike to pass through before conducting a significant amount of current.low capacitance . Non Radioactive


DC Spark-over Voltage @100V/SDC : 470V±20%

Maximum Impulse Spark-over Voltage @100V/μS:900V

Maximum Impulse Spark-over Voltage @1KV/μS:1000V

Minimum Insulation Resistance: 1 GΩ (at 100V DC)

Maximum Capacitance @1MHz:1.5pF

Arc Voltage @1A:25V

Nominal Impulse Discharge Current @8/20μs ±5times: 20KA

Max Impulse Discharge Current @8/20μs 1 time: 25KA

Nominal Alternating Discharge Current @50Hz 1 Sec 10 times : 20A

Impulse Life @10/1000μs 300 times :200A

Package:φ8*10mm


Type :

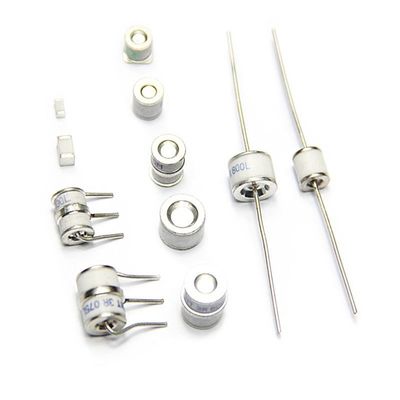

Axis wire , radial wire , without wire , with three wire , with one middle wire , SMD type ECT .
