Compact Structure Y2 Safety Capacitor 101K Coated With Epoxy Resin

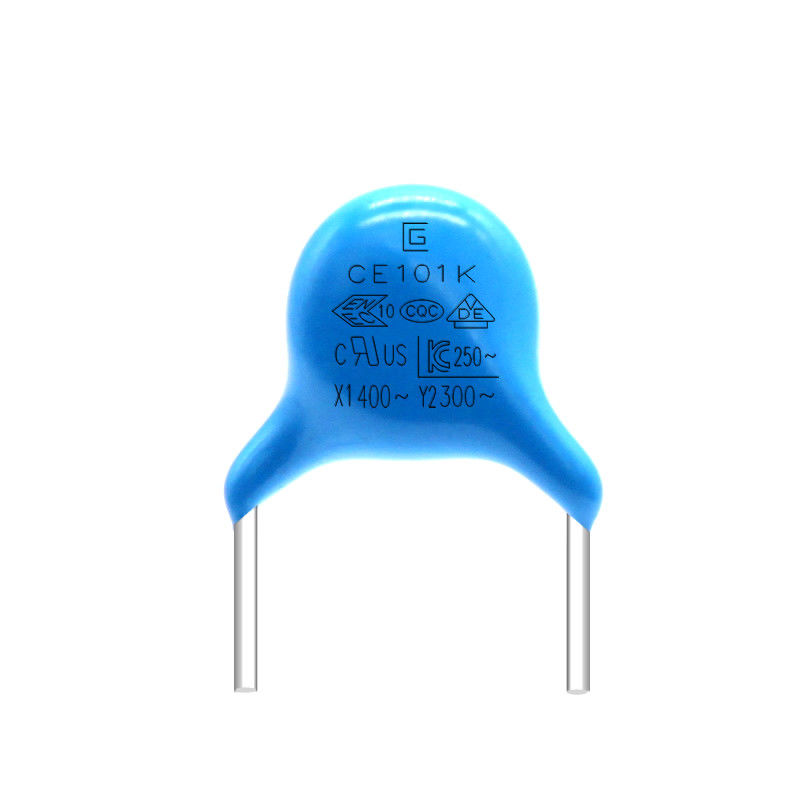

Large Image : Compact Structure Y2 Safety Capacitor 101K Coated With Epoxy Resin

Product Details:

Place of Origin:	DongGuan China
Brand Name:	SG
Certification:	VDE，CQC
Model Number:	Y5P-101K-300VAC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Export package
Delivery Time:	Negotiation
Payment Terms:	T/T, L/C
Supply Ability:	100000000 Pieces

Contact Now

Compact Structure Y2 Safety Capacitor 101K Coated With Epoxy Resin

Description

Application:	Office Equipment,electronic, AC / Motor	Material:	Ceramic
Package Type:	Surface Mount	Supplier Type:	Original Manufacturer, ODM
Keyword:	Y2 Safety Capacitor	Operating Temperature:	-25°C~+85°C
Highlight:	CQC 101K Capacitor , Compact Structure Y2 Safety Capacitor , Y2 Safety Capacitor 101K

Compact Structure 101K 300VAC Y2 Safety Capacitor Coated With Epoxy Resin

Product parameters

Specification Reference Standard	IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384
Approved Monogram	VDE / ENEC / IEC / UL / CSA / KC / CQC
Subclass ; Rated Voltage(UR)	X1 / Y1/Y2 ; 400VAC / 300VAC/500VAC
Capacitance Range	10pF to 10000pF
Voltage Proof	4000VAC for 1min/2000VAC for 1min/1800VAC for 1min
Capacitance Tolerance	Y5P±10%(K) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz
Dissipation Factor (tgδ)	Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz
Insulation Resistance(IR)	IR≥10000MΩ,1min,100VDC
Operating Temperature	-40℃ to +85℃ ; -40℃ to +125℃
Temperature Characteristic	Y5P,Y5U,Y5V
Flame Retardant Epoxy	UL94-V0

model	width	thickness	foot spacing	lead	Voltage	capacity	material	Tolerance
Y2-103M-Y5V	φ13mm	T3.8mm	F10mm	L3-22mm	300V[**]C	10000pF	Y5V	±20%
Y2-472M-Y5V	φ9.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	4700pF	Y5V	±20%
Y2-332M-Y5V	φ8.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	3300pF	Y5V	±20%
Y2-222M-Y5V	φ7.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	2200pF	Y5V	±20%
Y2-152M-Y5V	φ6.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	1500pF	Y5V	±20%
Y2-102M-Y5V	φ6.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	1000pF	Y5V	±20%
Y2-472M-Y5U	φ13mm	T3.8mm	F10mm	L3-22mm	300V[**]C	4700pF	Y5U	±20%
Y2-332M-Y5U	φ11mm	T3.8mm	F10mm	L3-22mm	300V[**]C	3300pF	Y5U	±20%
Y2-222M-Y5U	φ8.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	2200pF	Y5U	±20%
Y2-152M-Y5U	φ8.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	1500pF	Y5U	±20%
Y2-102M-Y5U	φ7.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	1000pF	Y5U	±20%
Y2-821K-Y5U	φ7.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	820pF	Y5U	±10%
Y2-681K-Y5U	φ6.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	680pF	Y5U	±10%
Y2-561K-Y5U	φ6.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	560pF	Y5U	±10%
Y2-471K-Y5U	φ6.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	470pF	Y5U	±10%
Y2-102K-Y5P	φ10mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	1000pF	Y5P	±10%
Y2-821K-Y5P	φ10mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	820pF	Y5P	±10%
Y2-681K-Y5P	φ8.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	680pF	Y5P	±10%
Y2-561K-Y5P	φ8mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	560pF	Y5P	±10%
Y2-471K-Y5P	φ7.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	470pF	Y5P	±10%
Y2-331K-Y5P	φ6.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	330pF	Y5P	±10%
Y2-221K-Y5P	φ6.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	220pF	Y5P	±10%
Y2-151K-Y5P	φ6.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	150pF	Y5P	±10%
Y2-101K-Y5P	φ6.5mm	T3.8mm	F7.5mm	L3-22mm	300V[**]C	100pF	Y5P	±10%

Production Process

Compact Structure Y2 Safety Capacitor 101K Coated With Epoxy Resin 0

Product structure

Product Usage
