| Features: | Meeting Various Countries' Safety Standards | Application: | High Frequency AC Load |
|---|---|---|---|
| Material: | Ceramic | Supplier Type: | Original Manufacturer, ODM |
| Keyword: | Y2 Safety Capacitor | Capacity: | 10pf ~10000pf |
| Highlight: | 471K Y2 Safety Capacitor,Y2 Safety Capacitor Good Stability,300 VAC Capacitor |
||

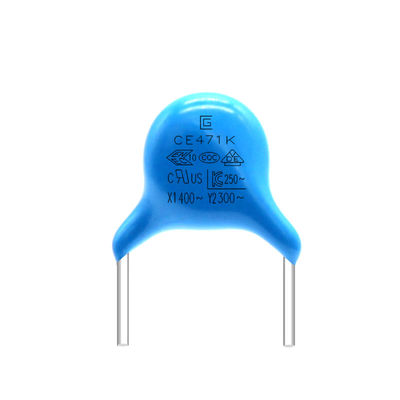

Good Stability 331K 300VAC Y2 Safety Capacitor For High Frequency AC Load
These Ceramic Disc Capacitors are specifically designed for AC applications
and meet the safety requirements of various safety standards agencies.
These capacitors are ideal for across the line and line by-pass applications
Features
Ideal for across the line applications
Compact size
Cost effective product
Safety standards recognized for AC applications
Application:
It is suitable for power supply circuit noise suppression circuit of electronic equipment, also can be used as antenna coupling jumper and bypass circuit, is a kind of ac
Line filters and X/Y class capacitors with primary and secondary coupling of switching power and ac converters.
| Specification Reference Standard | IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384 |
| Approved Monogram | VDE / ENEC / IEC / UL / CSA / KC / CQC |
| Subclass ; Rated Voltage(UR) | X1 / Y1/Y2 ; 400VAC / 300VAC/500VAC |
| Capacitance Range | 10pF to 10000pF |
| Voltage Proof | 4000VAC for 1min/2000VAC for 1min/1800VAC for 1min |
| Capacitance Tolerance | Y5P±10%(K) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz |
| Dissipation Factor (tgδ) | Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz |
| Insulation Resistance(IR) | IR≥10000MΩ,1min,100VDC |
| Operating Temperature | -40℃ to +85℃ ; -40℃ to +125℃ |
| Temperature Characteristic | Y5P,Y5U,Y5V |
| Flame Retardant Epoxy | UL94-V0 |
| model | width | thickness | foot spacing | lead | Voltage | capacity | material | Tolerance |
| Y2-103M-Y5V | φ13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 10000pF | Y5V | ±20% |
| Y2-472M-Y5V | φ9.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 4700pF | Y5V | ±20% |
| Y2-332M-Y5V | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 3300pF | Y5V | ±20% |
| Y2-222M-Y5V | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5V | ±20% |
| Y2-152M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5V | ±20% |
| Y2-102M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5V | ±20% |
| Y2-472M-Y5U | φ13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 4700pF | Y5U | ±20% |
| Y2-332M-Y5U | φ11mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 3300pF | Y5U | ±20% |
| Y2-222M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5U | ±20% |
| Y2-152M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5U | ±20% |
| Y2-102M-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5U | ±20% |
| Y2-821K-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5U | ±10% |
| Y2-681K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5U | ±10% |
| Y2-561K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5U | ±10% |
| Y2-471K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5U | ±10% |
| Y2-102K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5P | ±10% |
| Y2-821K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5P | ±10% |
| Y2-681K-Y5P | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5P | ±10% |
| Y2-561K-Y5P | φ8mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5P | ±10% |
| Y2-471K-Y5P | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5P | ±10% |
| Y2-331K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 330pF | Y5P | ±10% |
| Y2-221K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 220pF | Y5P | ±10% |
| Y2-151K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 150pF | Y5P | ±10% |
| Y2-101K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 100pF | Y5P | ±10% |
