Product Details:
|
| Features: | Meeting Various Countries' Safety Standards | Keyword: | Ceramic Safety Capacitor |
|---|---|---|---|
| Material: | Ceramic | Supplier Type: | Original Manufacturer, ODM |
| Capacity: | 10pf ~10000pf | Application: | Control Panel Of Various Small Household Appliances |
| Highlight: | Small Loss Y2 Safety Capacitor,Y2 Safety Capacitor 151K,Power Filter Ceramic Safety Capacitor |
||

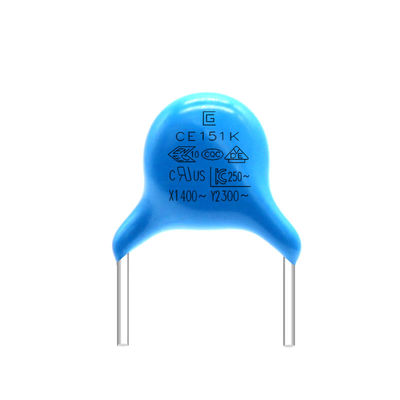

Small Loss 151K 300VAC Y2 Safety Capacitor Can Withstand The Impact Of Large Peak Surge Voltage And Current
Features:
Meeting various countries' safety standards
Compact structure
Cost-efficient
Coated with epoxy resin
Application:
1. It is suitable for noise suppression circuit of power supply circuit of electronic equipment
2. Can be used in antenna coupling and bypass circuit
3. Control panel of various small household appliances
4. Power filter
5. High frequency AC load
6. Switching power supply
7. Electronic ballast
8. LED bulbs
| Specification Reference Standard | IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384 |
| Approved Monogram | VDE / ENEC / IEC / UL / CSA / KC / CQC |
| Subclass ; Rated Voltage(UR) | X1 / Y1/Y2 ; 400VAC / 300VAC/500VAC |
| Capacitance Range | 10pF to 10000pF |
| Voltage Proof | 4000VAC for 1min/2000VAC for 1min/1800VAC for 1min |
| Capacitance Tolerance | Y5P±10%(K) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz |
| Dissipation Factor (tgδ) | Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz |
| Insulation Resistance(IR) | IR≥10000MΩ,1min,100VDC |
| Operating Temperature | -40℃ to +85℃ ; -40℃ to +125℃ |
| Temperature Characteristic | Y5P,Y5U,Y5V |
| Flame Retardant Epoxy | UL94-V0 |
| model | width | thickness | foot spacing | lead | Voltage | capacity | material | Tolerance |
| Y2-103M-Y5V | φ13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 10000pF | Y5V | ±20% |
| Y2-472M-Y5V | φ9.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 4700pF | Y5V | ±20% |
| Y2-332M-Y5V | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 3300pF | Y5V | ±20% |
| Y2-222M-Y5V | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5V | ±20% |
| Y2-152M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5V | ±20% |
| Y2-102M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5V | ±20% |
| Y2-472M-Y5U | φ13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 4700pF | Y5U | ±20% |
| Y2-332M-Y5U | φ11mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 3300pF | Y5U | ±20% |
| Y2-222M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5U | ±20% |
| Y2-152M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5U | ±20% |
| Y2-102M-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5U | ±20% |
| Y2-821K-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5U | ±10% |
| Y2-681K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5U | ±10% |
| Y2-561K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5U | ±10% |
| Y2-471K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5U | ±10% |
| Y2-102K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5P | ±10% |
| Y2-821K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5P | ±10% |
| Y2-681K-Y5P | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5P | ±10% |
| Y2-561K-Y5P | φ8mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5P | ±10% |
| Y2-471K-Y5P | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5P | ±10% |
| Y2-331K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 330pF | Y5P | ±10% |
| Y2-221K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 220pF | Y5P | ±10% |
| Y2-151K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 150pF | Y5P | ±10% |
| Y2-101K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 100pF | Y5P | ±10% |
Production Process
Product structure
Product Usage
